Meet our gauging solutions

Get film thickness data in real time

Empower your production line to produce high-quality film with consistent data on thickness measurement – in real time.

Thickness gauging

The role of thickness measurement in blown film extrusion

Our customers in 61+ countries have strongly emphasized that integrating film thickness technology directly into your production line, rather than relying solely on post-production laboratory measurements, offers significant advantages.

Inline thickness gauging allows for real-time monitoring of the film thickness during the blown extrusion process. It ensures that the film meets the required specifications and maintains consistent thickness across its width with milimetric precision. By detecting any variations in thickness, manufacturers can take immediate actions.

Play Video

Achieve quality control and cut material waste.

Octagon takes pride in offering a remarkable resolution of 0.1μm in its line of thickness gauges.

Benefits

4 reasons to measure film thickness inline

Minimize costs

By identifying deviations in real time, manufacturers can reduce material waste and avoid the production of out-of-spec products. This leads to significant increases in productivity and profitability.

Real-time info

Real-time data right on the screen empowers operators to make timely decisions and adjustments to ensure consistent and accurate film thickness.

Data-driven decisions

Fine-tune your process with data to optimize production parameters such as die gap, melt temperature, air ring settings, and cooling conditions.

Automated control

Achieve automated control over thickness by integrating a film thickness sensor with an air ring. Reduce human intervetion and ensure fast and accurate control.

How It Works

The world’s most resilient thickness sensors

Introducing our exceptional lineup of film thickness gauging products.

How does it work?

Bubble gauging

PMS-B and VenPad

Product Description:

Both the PMS-B and VenPad are advanced 360º thickness sensors, strategically positioned around the film bubble, a few meters above the air ring.

2x faster

Compared to flat film sensors placed after the nip roller, these sensors boast a measuring speed up to twice as fast, resulting in improved efficiency and productivity.

Operating Principle:

These sensors employ a rotating mechanism that revolves around the bubble while capturing thickness measurements with an unparalleled resolution of 0,1 μm. Following each rotation, the system screen displays information about thick and thin spots across the film.

PMS-B vs. VenPad

VenPad is a non-contact sensor specifically designed for measuring thickness of sticky film or films with delicate surfaces prone to scratching. VenPad's airflow technology prevents direct contact between the film and the sensor, ensuring accurate measurements without compromising film integrity.

Air Ring Integration

When integrated with an automatic air ring, the system seamlessly collaborates with the ring to automatically make necessary adjustments until the desired specifications are achieved, ensuring consistent film thickness control.

Technical features:

Measuring range:6 – 500 μm
Resolution:0,1 μm

Flat film gauging

PMS-FF

Product Description:

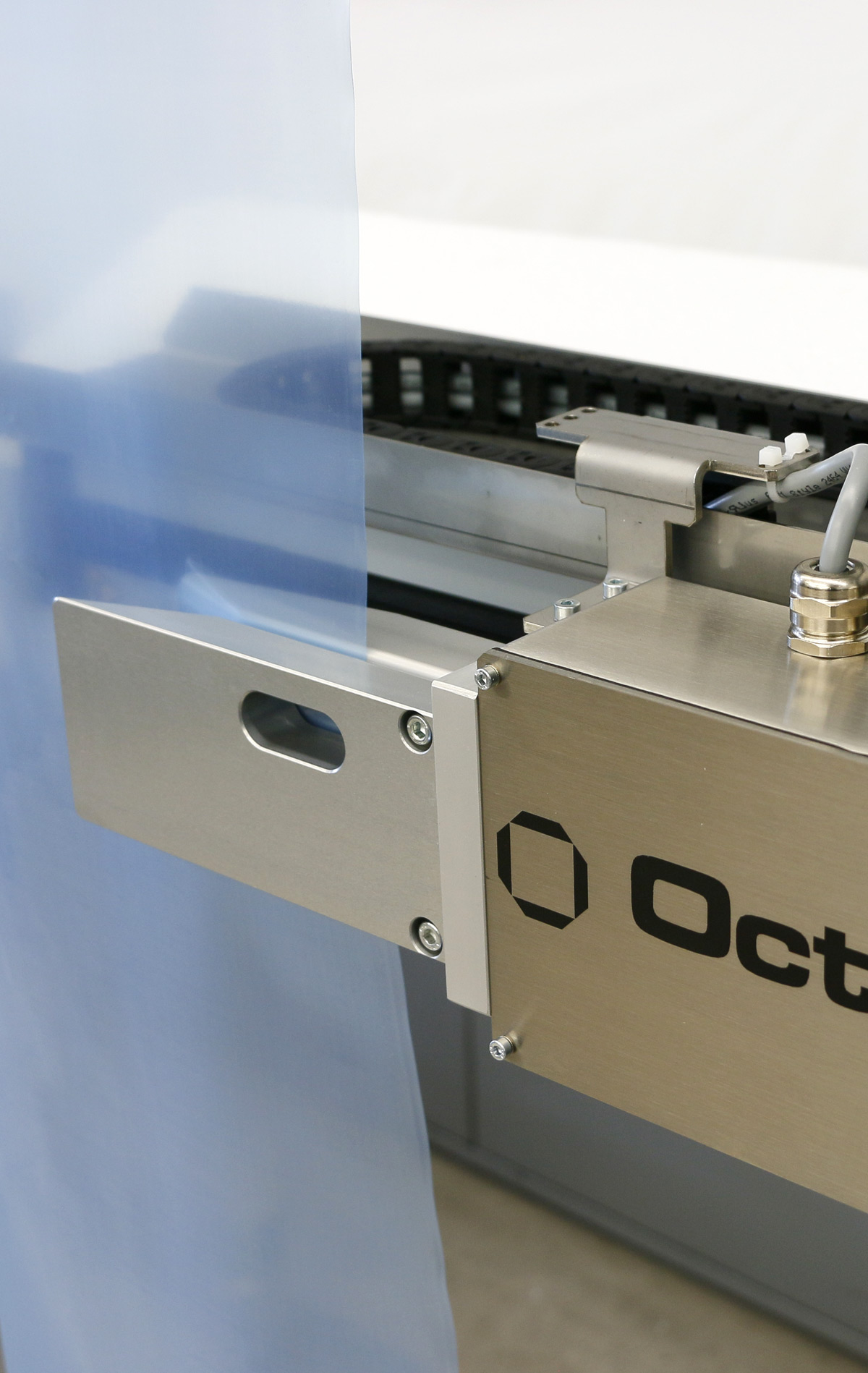

The PMS-FF thickness gauge is an advanced double capacitive sensor renowned for its ability to accurately measure multiple layer and barrier films.

Air Ring Integration

When integrated with an automatic air ring, the system seamlessly collaborates with the ring to automatically make necessary adjustments until the desired specifications are achieved, ensuring consistent film thickness control.

Operating Principle:

Positioned after the nip roller, the two sensors take measures at the edges of the lay-flat film. With automatic positioning, the two sensors dynamically adjust themselves to track any changes in width.

PMS-FF vs. PMS-B

While the PMS-B (B for "bubble") is positioned around the bubble right on top of the air ring, the PMS-FF ("flat film") is placed after the nip roller and is a non-contact sensor, allowing thickness gauging of barrier films as well.

Thickness and Width:

This system captures measurements of both thickness and width, transmitting the data to a computer for analysis. The results are then displayed on the screen, providing real-time feedback and facilitating precise monitoring of film dimensions.

Technical features:

Measuring range:6 – 300 μm
Resolution:0,1 μm
