Calibration Basket

Unmatched Precision and Stability for Blown Film Extrusion

Developed to deliver maximum precision, stability and durability, Octagon’s Main Calibration Basket redefines bubble control standards in plastic film extruders.
Contact our sales team

Utility

What is the calibration basket and why is it essential?

Octagon’s Calibration Basket is an advanced control and stabilization system for blown film extrusion.

Developed to provide maximum precision, stability and durability, Octagon’s calibration basket redefines bubble control standards in plastic film extruders.

Primary function in the process:

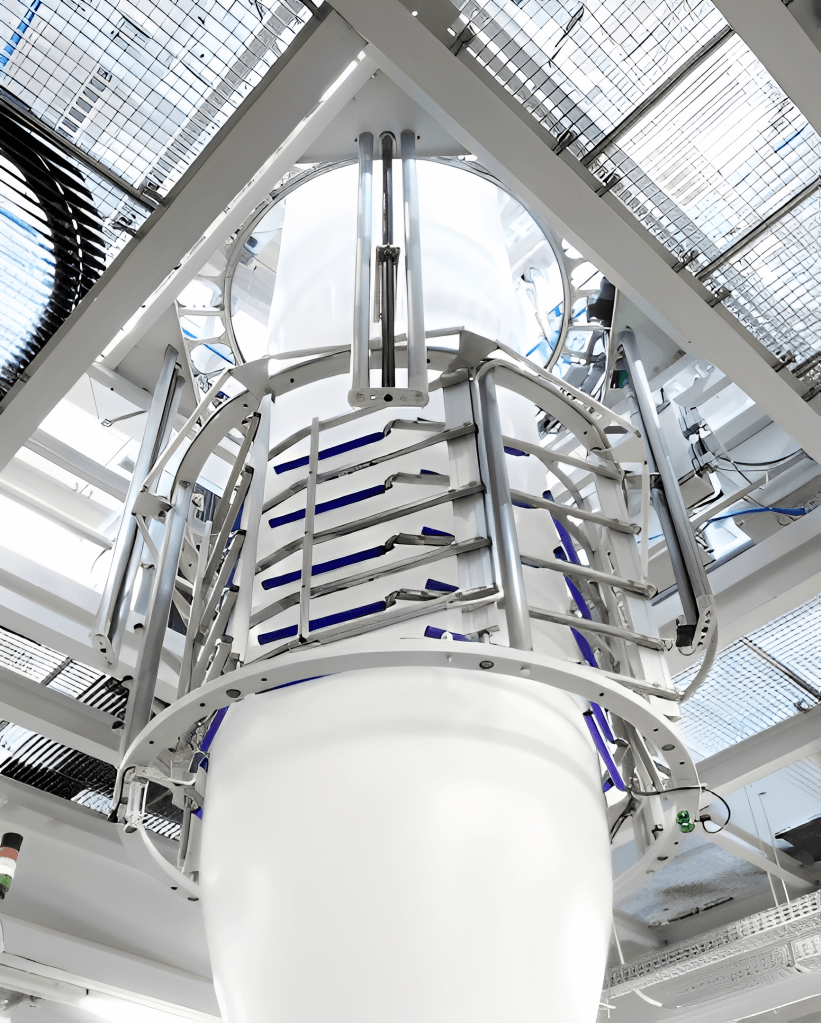

The calibration basket plays a fundamental role in blown film extrusion, especially during the first cooling stages. Installed right above the die head and air ring, it stabilizes the bubble to ensure uniform cooling throughout the entire circumference.

This stability is crucial to avoid deformations caused by air flow oscillations — common in high-output lines. With the bubble under control, the film exhibits better uniformity and surface finish.

Additionally, the calibration basket reduces vibrations that could compromise the dimensional precision of the film. This is vital to maintain quality standards and repeatability.

Models with radial supports further enhance this control, distributing support along the lay-flat width. The result is a more stable process, with real gains in uniformity, productivity and waste reduction.

Advanced design and technology

Innovative Radial System

The radial system calibration basket model means that the rollers always move in a radial and centralized manner towards the bubble. This way, the ultrasonic sensors fixed on the moving arms of the calibration basket are always pointed at the bubble center, with no deviation in their measurement, ensuring precision in the IBC control system measurement.

Intelligent modular construction

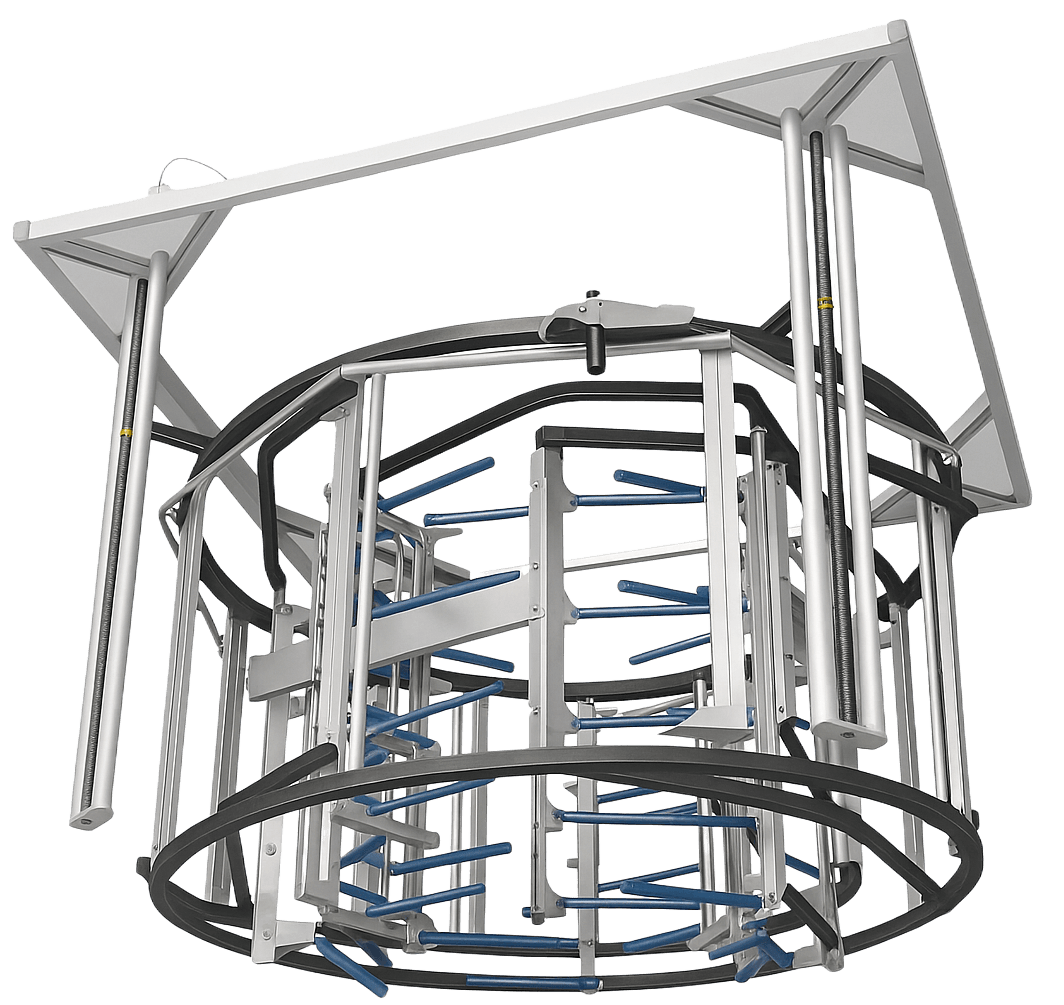

Modular construction, with frame for height adjustment, and basket for diameter adjustment, providing greater versatility and ease of maintenance.

Complementary secondary calibration system

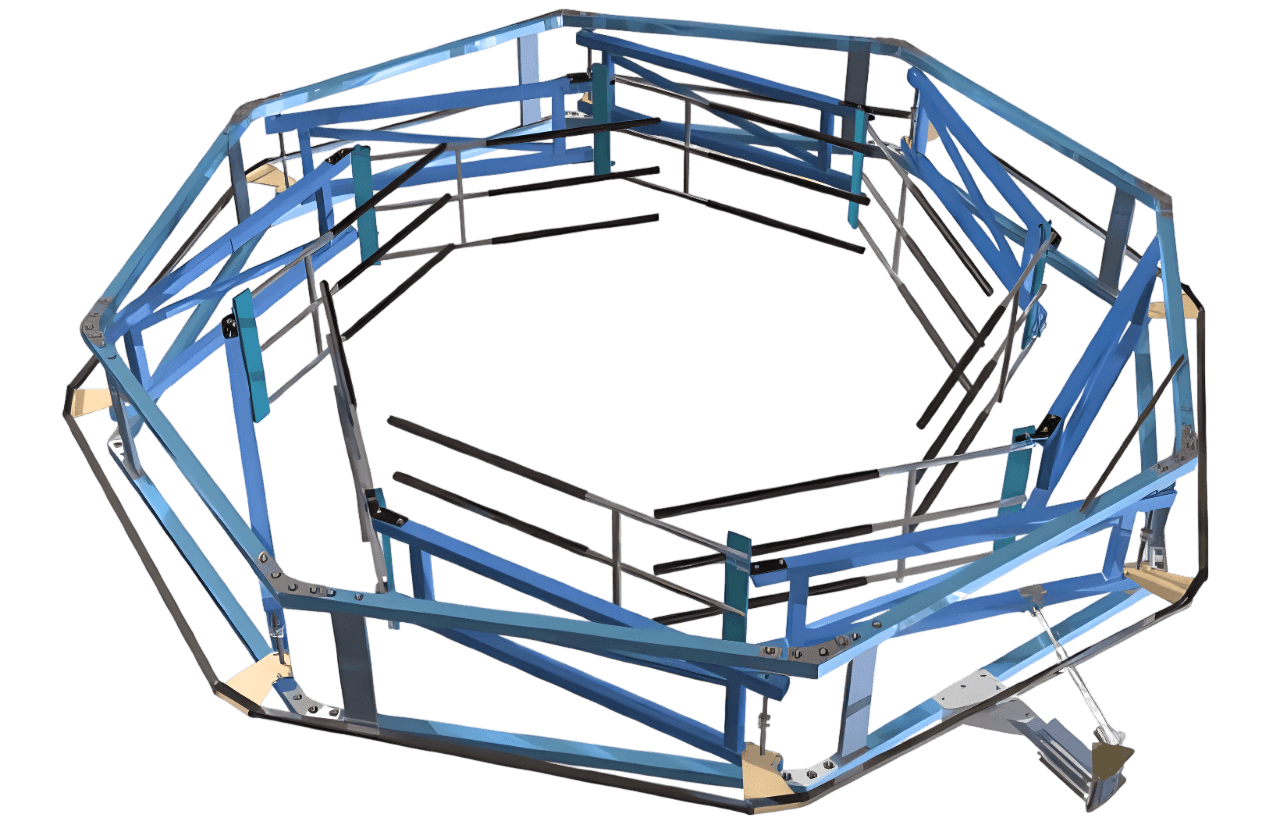

Octagon’s secondary basket acts as a bubble support system, offering additional stabilization and eliminating residual vibrations to ensure even more precise measurements. This complementary component integrates perfectly with SmartLip ONE, optimizing automatic adjustments and contributing to superior blown film quality, even in high-speed operations.

5-level roller system:

16 contact points

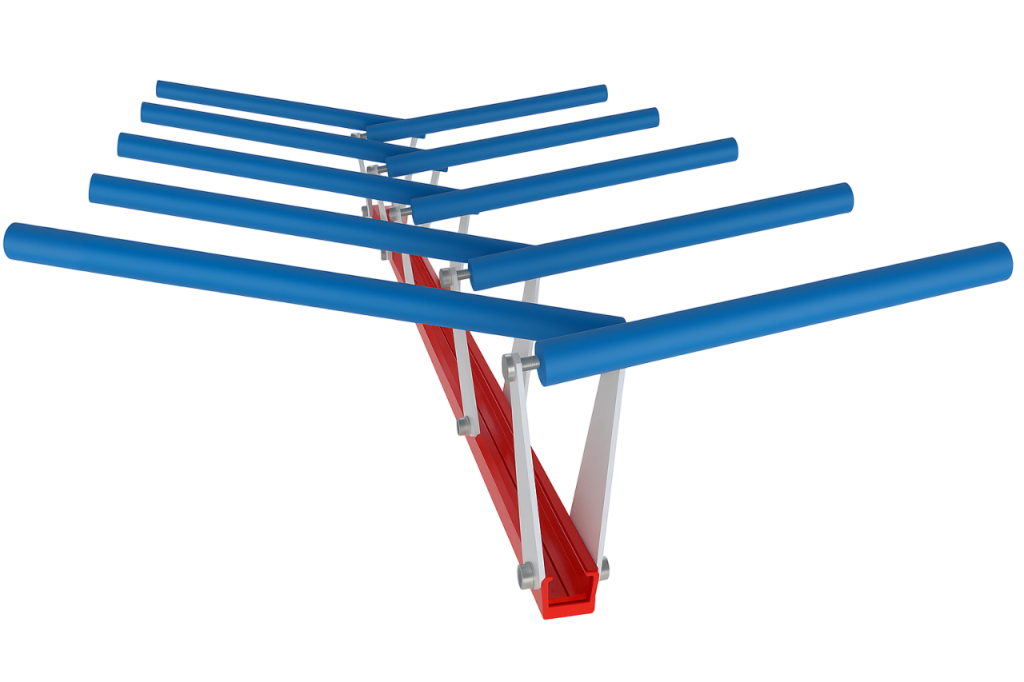

5 roller levels, with 8 arms and dual rollers in V-Format, resulting in 16 contact points around the bubble, ensuring perfect bubble embrace and consequently excellent stabilization.

Carbon fiber rollers

Dual carbon fiber rollers on each arm, highly durable and maintenance-free.

Patented rollers

Patented rollers, interchangeable and low inertia.

Transformative benefits

Incomparable performance

Octagon’s radial Calibration Basket system establishes new performance standards in the industry, combining German precision with operational robustness. Its advanced architecture ensures stable operation even under the most demanding conditions, providing total reliability in high-productivity lines where every minute of operation represents significant value for the business.

High Productivity

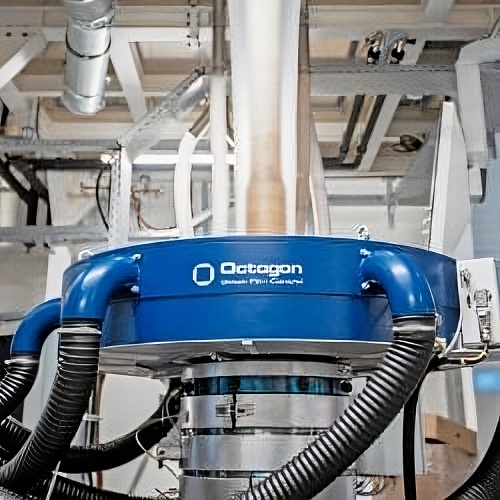

Compatible with high-productivity and line-speed machines, ensuring the necessary support for high-quality film

Robust Design

High reliability and durability construction for intensive operations

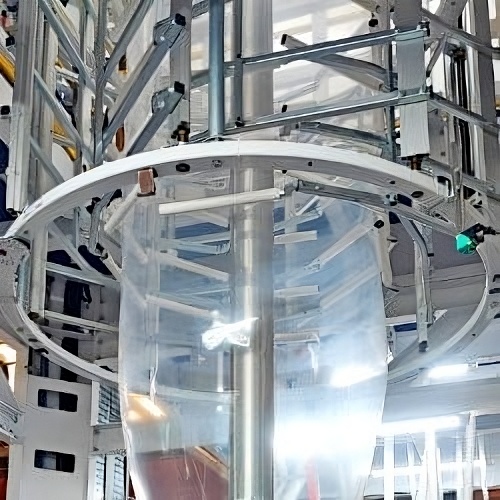

Perfect Stabilization

Radial system ensures perfect bubble embrace with excellent stabilization

Superior precision and control

Precise Measurement

Ultrasonic sensors always pointed at the bubble center, with no measurement deviations

IBC Control

Guaranteed precision in IBC control system measurement

Fine Adjustments

Selection of different speeds allows fine width adjustments with speed lower than 10mm/s

Total integration

Unified System

Complete integration with Octagon's width control system

Intelligent Control

Control panel with Siemens IO module for optimized command

Operational Versatility

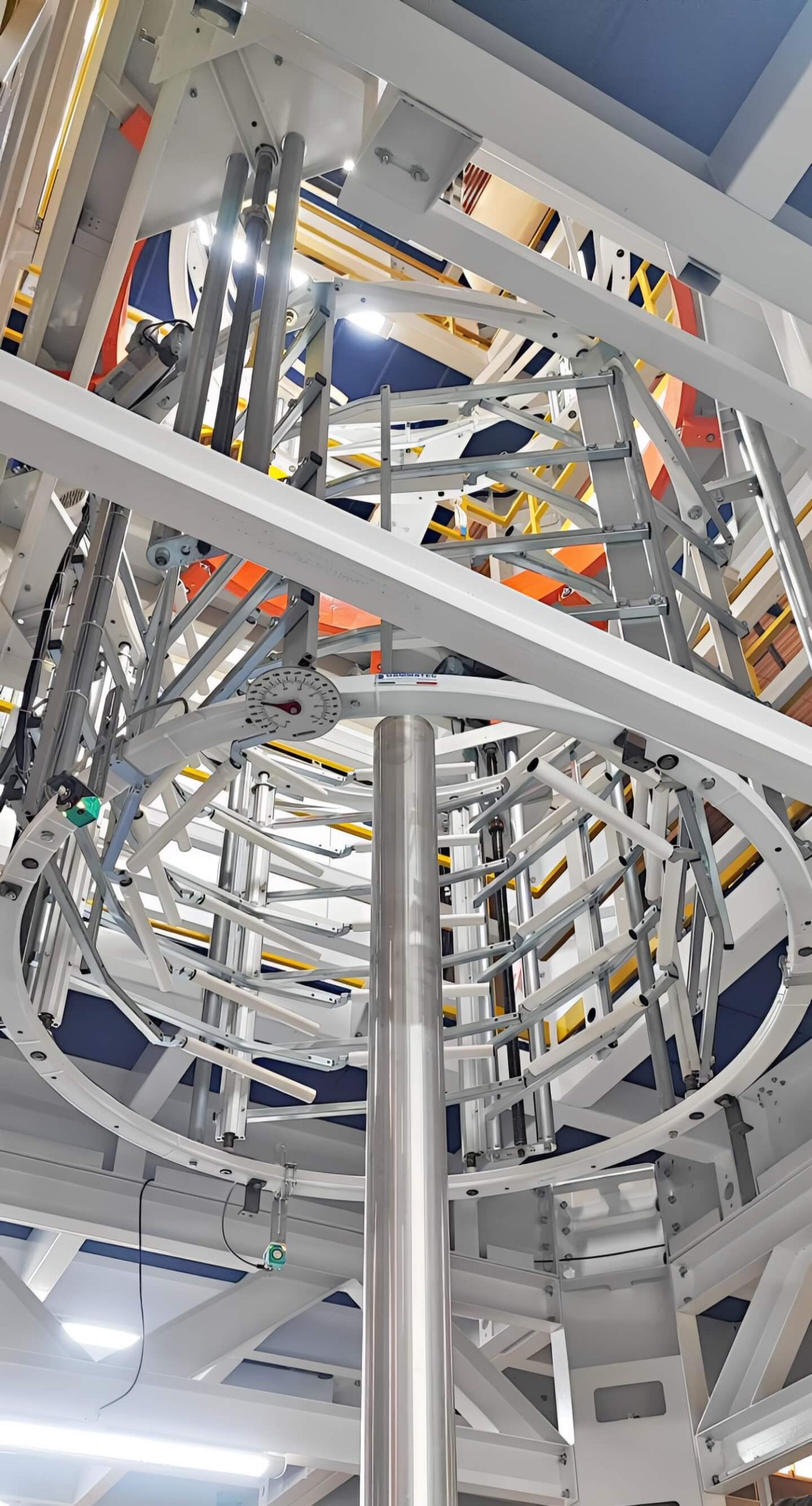

Height adjustment range up to 2400mm for maximum flexibility

Applicability

Industries Served

Blown Film Process Advantages

Blown film extrusion technology has revolutionized the packaging production chain, allowing organizations from various sectors to achieve new levels of operational efficiency. From the food industry, with its rigorous demands for safety and preservation, to specialized industrial segments, our solution serves companies seeking excellence in quality and competitiveness in the global market.
Versatility

Compatible with a wide spectrum of plastic materials, allowing creation of films adapted to various properties and applications.

Consistency

Ensured production of uniform films that exhibit high level of clarity and strength.

Orientation Control

The unique capability of the blown film process is to balance orientation between machine direction and transverse direction.

Stabilization technology

Bubble stability control

Vital importance

From a manufacturing standpoint, blown film offers advantages for controlling thickness variation, the bubble is typically rotated as the film is extruded and wound. This distributes and mitigates some variations.

Cooling technology

The molten material is forced through a die with pre-established dimensions to compose a preform, which is inflated with compressed air until reaching the diameter corresponding to the established width for the film reel. This bubble will be gradually flattened by a set known as the collapsing frame.
Need to increase your production performance?

Contact our sales team!

Request quote

Maintenance and Durability

Low-maintenance design

Octagon’s German engineering prioritizes operational longevity and maintenance cost reduction. Each component is designed to withstand intensive industrial production demands, ensuring maximum line availability and minimizing unscheduled interventions.

Maintenance-Free Rollers

High durability and maintenance-free carbon fiber rollers

Interchangeable Rollers

Patented and interchangeable rollers facilitate eventual replacements

Total Protection

Mechanical parts protected in any position, preventing contamination

High-performance materials

Carbon Fiber

Premium material that offers maximum durability and strength

Low Inertia

Design optimized for smooth and efficient operation

Long Service Life

Robust construction ensures reliable operation for long periods

Contractual performance guarantee

We are the only company in the sector that contractually ensures clear goals for productivity and quality increase for our customers.
Request a quote

Competitive advantage

Exclusive Radial System Technology

The Octagon solution consolidates decades of German expertise in precision engineering, establishing itself as a global reference in advanced technologies for bubble control. Our innovative approach integrates operational intelligence with industrial robustness, providing organizations with a sustainable competitive advantage through solutions that transcend conventional market standards. This technological advantage materializes in:

Centralized Radial Movement

Rollers always move in a radial and centralized manner towards the bubble

Measurement Precision

Ultrasonic sensors fixed on moving arms always pointed at the center

Optimized IBC Control

Perfect integration with Smart IBC control system

Bubble protection

System developed to ensure improved bubble guidance and stabilization, without interference on the film surface and main characteristics such as geometry and thickness, even at high productivities.

We guarantee your ROI!

Guaranteed Results

Octagon’s Calibration Basket is not just equipment – it’s a complete solution that transforms blown film production through:

Unmatched Stability of the bubble throughout the entire process

Superior Quality of the final film without marks or defects

Increased Productivity through better process control

Waste Reduction through greater consistency and uniformity

Perfect Integration with other advanced control systems

Smart Investment

By choosing Octagon’s Calibration Basket, you invest in proven German technology with specialized technical support and results guarantee that transforms your production line into a center of excellence for blown film extrusion.

Advanced technical specifications

Operational capabilities

Bubble Diameters

140 to 1943 mm

Film Width

220 to 3050 mm

Height Adjustment Range

500 to 2400 mm

Motorized movement system

Open/Close Movement

Motorized with 24V linear actuator, controlled by the main HMI

Speed Selection

Different speeds for diameter adjustment, allowing fine width adjustments

Up/Down Movement

Motorized with 400V three-phase gearmotor, controlled by the main HMI

Adjustment Speed

Precision in width control with speed lower than 10mm/s in automatic mode

Electrical and control system

Control Panel

With Siemens IO module for motor control and ultrasonic sensor connection

Intelligent Integration

Optimized mechanical adjustment for integration with ultrasonic sensors and Smart IBC control system

Compatibility

Integration with Octagon's width control system
